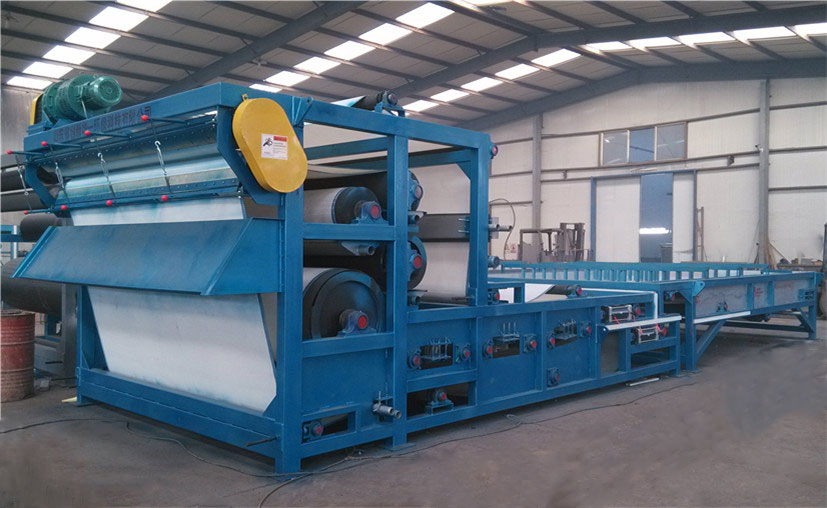

Belt Pressure Filter
Brand FUXIN
Product origin Jiangsu
Delivery time 10-20 weeks
Supply capacity 1000 sets/year
DYC belt filter press is specially designed for the large treatment capacity of pre concentrated sludge to meet the needs of high load work. The machine also has a detachable fully enclosed cover to meet the environmental protection requirements of the design of the dehydration machine room.
Download
Product introduction and features
DYC belt filter press is specially designed for the large treatment capacity of pre concentrated sludge to meet the needs of high load work. The machine also has a detachable fully enclosed cover to meet the environmental protection requirements of the design of the dehydration machine room.
Main specifications and parameters:
Model | DYC1000 | DYC1500 | DYC2000 | DYC2500 | DYC3000 |
Filter belt width（mm） | 1000 | 1500 | 2000 | 2500 | 3000 |
Filter belt speed（m/min） | 1.5-6.0 | ||||
Main engine transmission power（Kw） | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 |
Cleaning water pressure（MPa） | ≥0.5 | ||||
Cleaning water volume（m³/h） | 4-6 | 6-10 | 9-15 | 12-20 | 15-25 |
Host noise（dB（A）） | ≤75 | ||||
Host quality（Kg） | 3800 | 4500 | 5500 | 6600 | 7200 |
Operating weight（Kg） | 4200 | 5200 | 6500 | 7200 | 8500 |
Overall dimension（mm） | 4200×1465×1750 | 4200×1965×1750 | 4200×2465×1750 | 4200×2965×1750 | 4200×3465×1750 |
The business scope of Jiangsu Yixing Fuxin Environmental Technology Co., Ltd. includes: manufacturing, processing and sales of Environmental Protection equipment, Water Treatment equipment, Dust removal, Desulfurization and Denitration equipment, Landfill Leachate equipment, Low-voltage Electric Nitrate equipment, Landfill Leachate equipment, Seawater Brackish Water Desalination equipment, Plastic products and Electric Control Cabinet; Installation of Environmental Protection equipment; Sales of Metal Materials, Pressure Vessels, Heat Exchangers, CBD Extraction Equipment, Environmental Protection accessories, filler products, FRP products, Thermal Insulation Materials, Water Treatment chemicals (except hazardous chemicals), Water Pumps, Valves, Fans, Flanges, Reducers, Pipes, Wires and Cables, Instruments and Meters; Remediation of soil pollution; River management services; Technical research and development of water treatment agents (except hazardous chemicals);
We have two ways of packaging. One is that small equipment is packaged in plywood boxes, and the other is that large equipment is shipped in containers.
Our company is located in Yixing city with convenient transportation and extending in all directions. It is very convenient for air and sea transportation:
75KM to Wuxi International Airport;
230km to Shanghai Pudong International Airport;
370km to Ningbo port;
200km away to Shanghai port;
Our after-sales service is to respond to customer problems within 8 hours and provide solutions online and remotely 24 hours. If necessary, arrive at the customer's site to solve the problem within 3 days except for force majeure.
